Year2015 – Manufacturer EMBRAER – Model LEGACY 500 – Serial Number 55000019
Airframe
Total Time 357.7
Total Landings 298 – Maintenance TrackingCamp – WingletsYes
Airframe 357.7 Hours – 384 Landings
Engine
Engine Maintenance Program MSP Gold
APUYes
Engine(s): Honeywell HTF75000E, Enrolled on MSP Gold
s/n P131167 — 357.7 Hours, 224 Cycles
s/n P131168 — 357.7 Hours, 224 Cycles

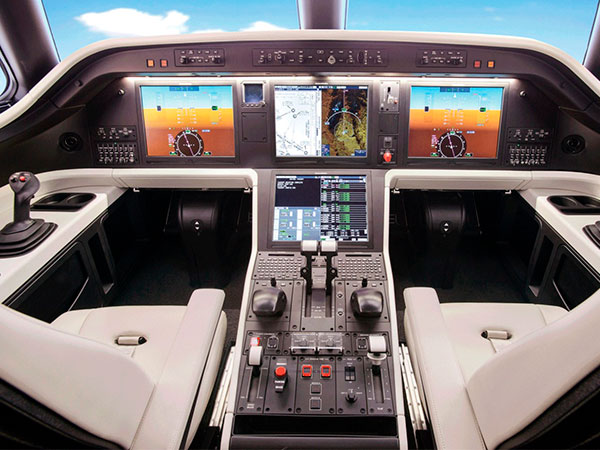

Avionics PackagingRockwell-Collins – ADS-B EquippedYes – FANSYes
Avionics/RadiosCollins ProLine Fusion FMS
Collins FCP-5070 FD/AP
(3) Collins VHF-4000 COMMs
(2) Collins NAV-4000 NAVs with FM Immunity
(2) Collins NAV-4000 ADF
(1) Collins TDR-94D Transponder
(1) Collins TSS-4100 Enhanced Transponder
(2) Collins DME-4000
Collins TPM-6000 & CCM-6210 EGPWS
Collins TSS-4100 TCAS II
XMGWX-6200 XM Graphical Weather
(2) Collins ALT-4000 Radio Altimeter
(1) Collins RTA-4118 and (1) XMWR-1000 WX Radar
(2) Collins HF 9031A
ICG ICS-220A SATCOM
Aircell ATG-5000 High Speed Data, Aviator 350 – AFIS
(1) Collins ACH-3000 and (2) ACH-4000 AHRS
(2) Collins GPS-4000S GPS
L-3 Communications FA5000 CVR (120 Min)
L-3 Communications FA5000 FDR (88 Minimum)
Wifi Yes – Additional Equipment ADS-B Out – Collins ECH-6200 Electronic Charts
Third Crew Member Seat – Winglets – RVSM Compliance – FANS 1A Compliance

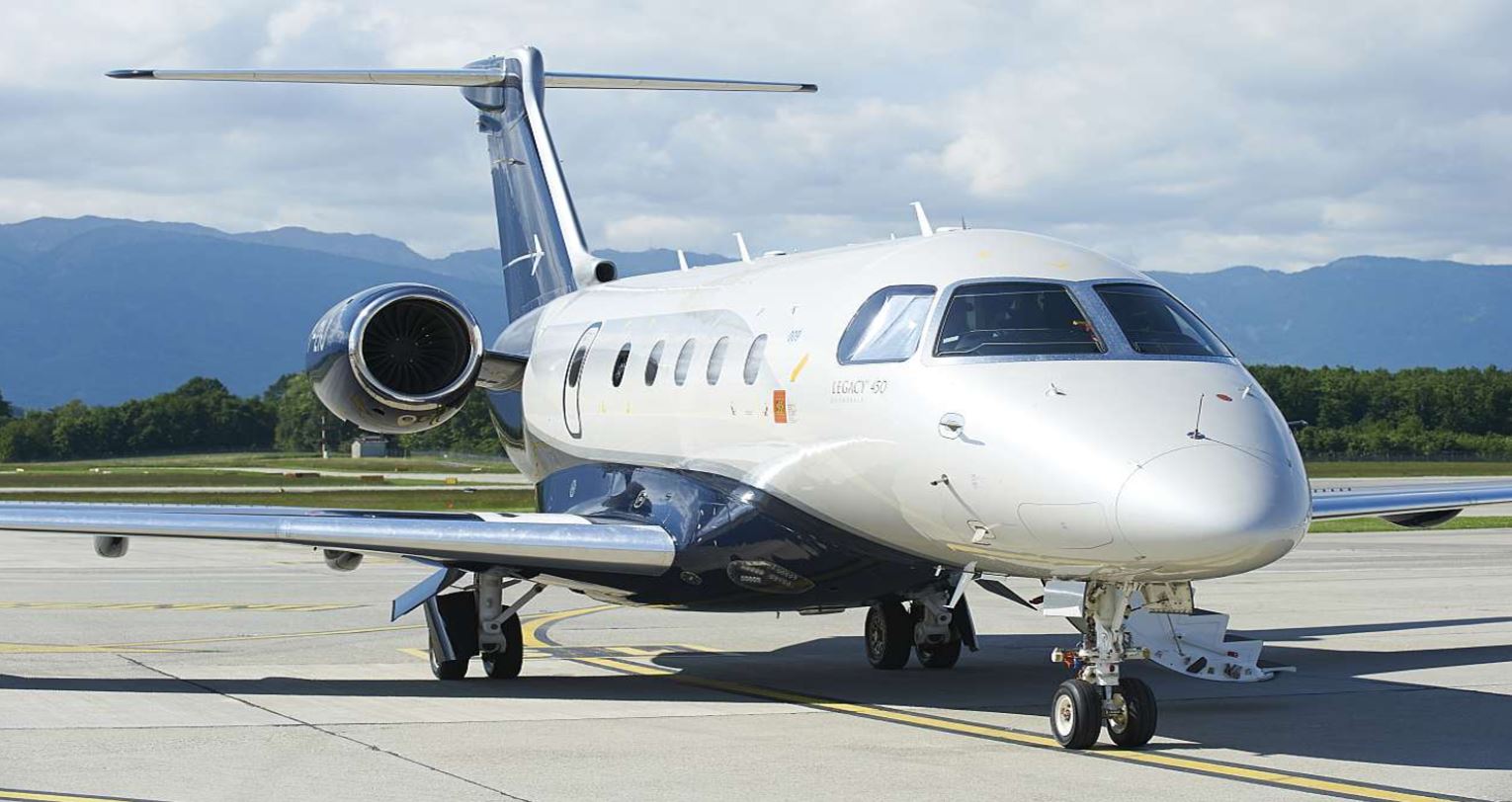

Exterior
Year Painted 2015 – Exterior Completed in White, Red Metallic and Navy.
Interior
Year Interior2015

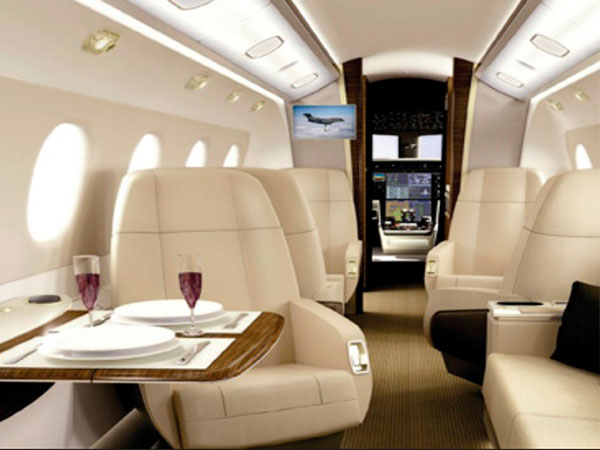

Galley Configuration Forward – Lavatory Yes – Lavatory Configuration Aft
Fireblocked executive interior is a double club configuration completed in light beige leather. Forward galley features full sink, service settings, coffee maker and microwave. Full aft lavatory. Entertainment features include two BlueRay/DVD/CD Players, XM Radio, two 19-Inch display monitors, two 9-inch display monitors, 8 additional side ledge monitors and Honeywell Ovation Select Jetmap Airshow.
